Revive Your Machine’s Engine Longevity with the Trinity System

By installing the Trinity System, you can not only address the contamination issue but also experience immediate cost savings. Say goodbye to the expenses associated with routine oil changes, equipment breakdowns, and lost production time. Our continuous flow system provides you with the remarkable equivalent of SEVEN oil changes per hour. It efficiently eliminates dirt, soot, carbon, water, and other impurities that could potentially harm your equipment.

A large yellow Caterpillar 793D dump truck with black accents, large tires, and a black cab, used in construction and mining.
A large yellow Caterpillar mining dump truck with a red arrow pointing to a silver fire extinguisher mounted on the front left side
Close-up of the upper part of a yellow construction or industrial machine with safety railing, warning signs, and various equipment against a gray sky.

Caterpillar 3516 Natural Gas Engine Case Study

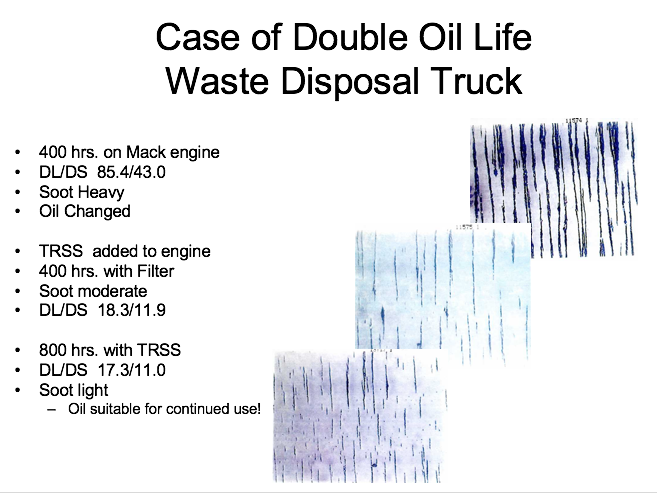

Engines before and after using Ferrography

Cat 3516 Natural gas inspection and evaluation after 42,500 hours operating time

Cost Analysis of Extended Life

  • Oil – Less then 25% of oil used

  • Reduced oil consumption in engines

  • Filters – All oil filters every 1000 hrs.

  • Labor – Reduced to less then 50%

  • Disposal – Reduced to less then 50%

  • Down time – Reduced time to service

  • Increased service life of component!

  • ROI is usually one year or less

Caterpillar 3516 Natural Gas Engine

  • Normal Overhaul is 30,000 hours in this application

  • TRSS filters installed when engine new

  • TRSS filters changed at 3000 hour intervals

    * Trinity recommends filter element changes at 1000 hours to ensure optimum performance.

  • Inspection performed by local caterpillar dealer

  • Oil analysis performed on regular interval

Cylinder Liner

  • The cylinder liner was in good condition

  • No evidence of scuffing or carbon cutting from deposits were noted

  • A dimensional inspection showed the following results

Bore in Liner

  • There was approx. 1.5 thou. taper in the liner. 6.5439

Bottom Line

  • SOME OTHER VERY SUBSTANTIAL COST SAVING BENEFITS!

  • OVERHAUL PERIOD COULD BE SUBSTANTIALLY EXTENDED FROM CURRENT

  • 3000 HOUR ELEMENT INTERVALS

    * Trinity recommends filter element changes at 1000 hours to ensure optimum performance

  • MORE THAN 50% LESS OIL TO DISPOSE OF (BASED ON AVERAGE DRAIN INTERVALS OF OTHER UNITS)

  • 50% REDUCTION IN FILTER CLEANING AND DISPOSAL COST

  • DECREASE IN DAILY OIL CONSUMPTION

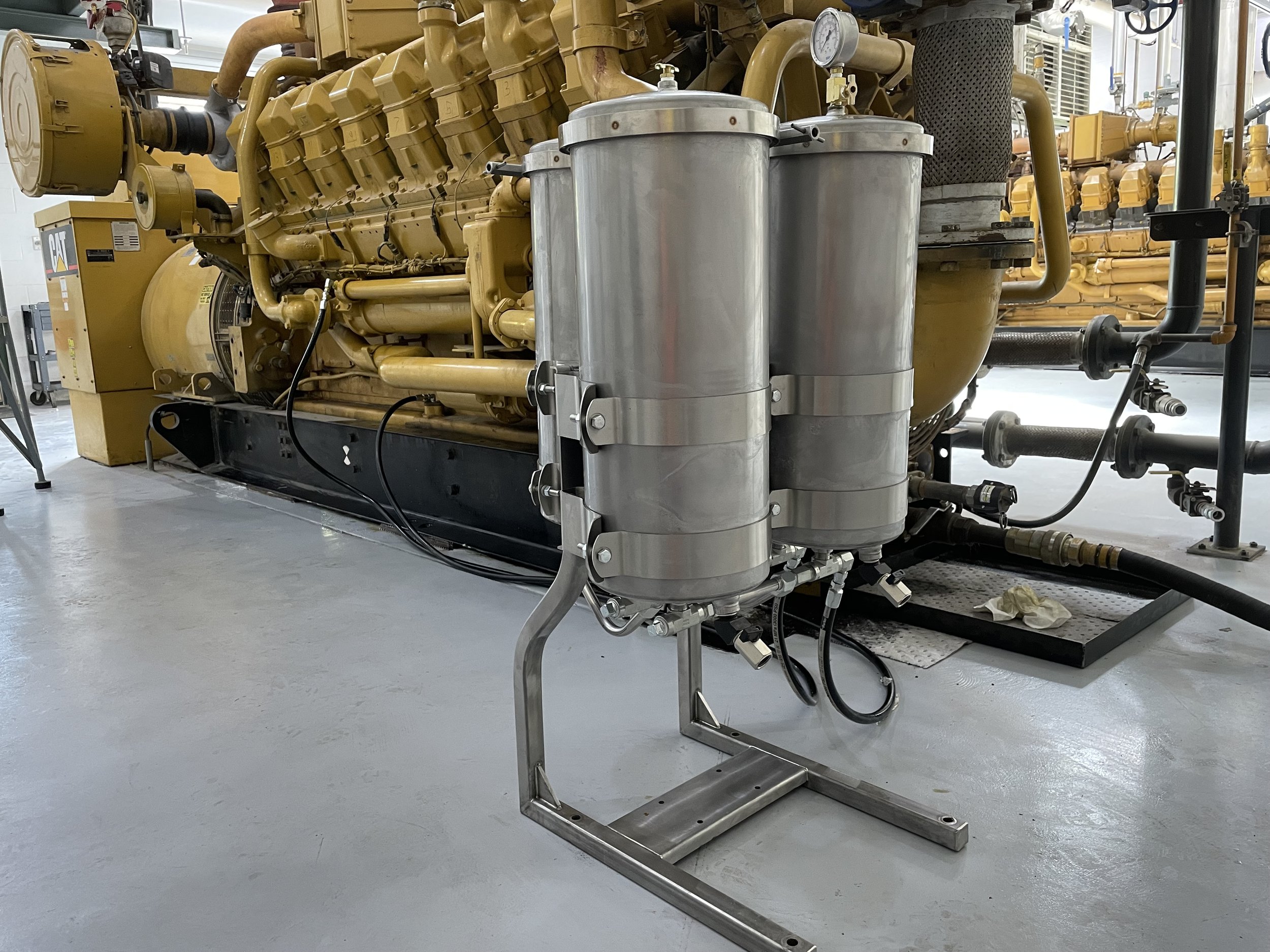

A large industrial yellow engine with two metallic filters attached in a spacious factory setting.
